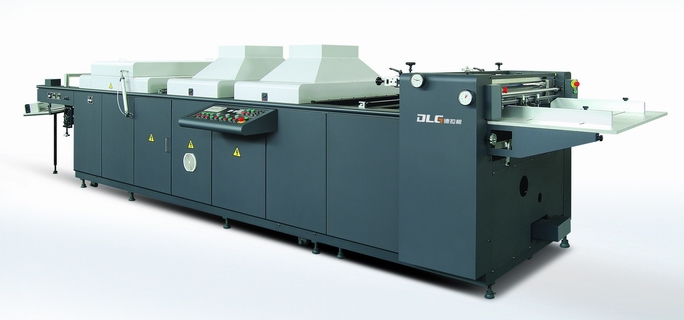

SGS-UI1040Z/1200Z SGS-UV1040Z/1200Z Series Manual Coating Machine














	Performance And Characteristics:


		1. SGS-UI model is configurated with IR
drying and UV curing



systems, which is optional for user's demand.


		2. Low investment, small location and high
efficiency. Powder-



removing section, ground coating section are optional.


		3. Control of NC oil reversed.


		4. Options: air knife system for light
paper above 80gsm.


		5. SGS-UV model: only with UV curing.









			| 型号 | Model | SGS-UV1040Z | SGS-UV1200Z | SGS-UI1040Z |

			| 最大宽度 | Max. width | 1040mm | 1200mm | 1040mm |

			| 最高速度 | Max. speed | 3500sph | 3500sph | 3500sph |

			| 数量 x UV 灯 | No. x UV lamp | 2x8kw | 2x9.75kw | 2x8kw |

			| 数量 x IR灯 | No. x IR lamp | ---- | ---- | 9x1.5kw |

			| 薄纸剥离装置 | System for light
  paper | 标准配置均没有配带,选配气刀装置Optional:Air
  knife system for light paper sbove 80gsm |

			| 使用纸张 | Paper weight | 250-800g/m2 | 250-800g/m2 | 250-600g/m2 |

			| 重量 | Weight | 2.8 t | 3 t | 3 t |

			| 体积 | Overall dimensions | 7050x1750x1510mm | 7050x1850x1510mm | 7050x1750x1510mm |
