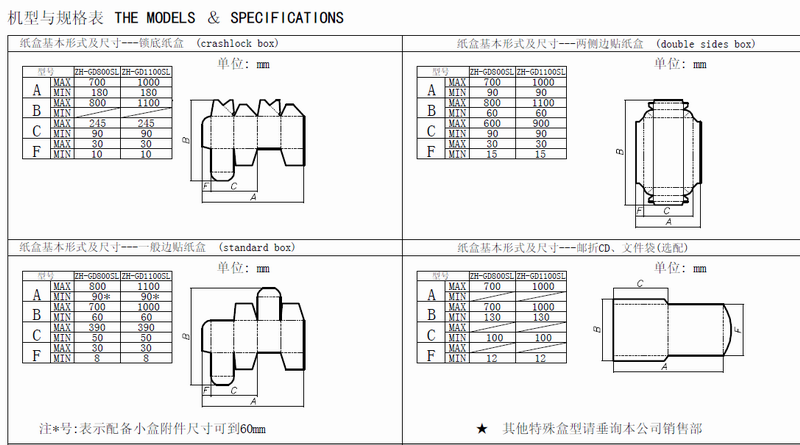

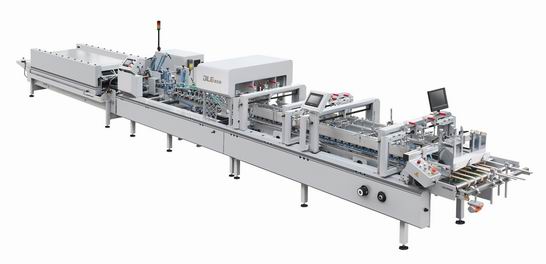

I. Machine model：ZH-GD800SL/1100SL fully-automatic folder gluer (4&6 corner)
Reminder：
See it much more clear by double click.
Power supply : 380V AC 50Hz
II. Features:
● The whole machine adopts the structure of laser-cut steel plates.
● Use German Contitech synchronous belts and wheels, correct running ratio, high speed, stable working, low noise and long service life.
●Modular structure and hommization design can enhance the installation and box change-over time.
●Inner couriers in the machine are adjusted by motors (position indicator is optional)
●Bearings are used in this machines: NSK, ASHAHI, HRB. Most of electrical components are Schneider brand.
IV．Basic configuration:

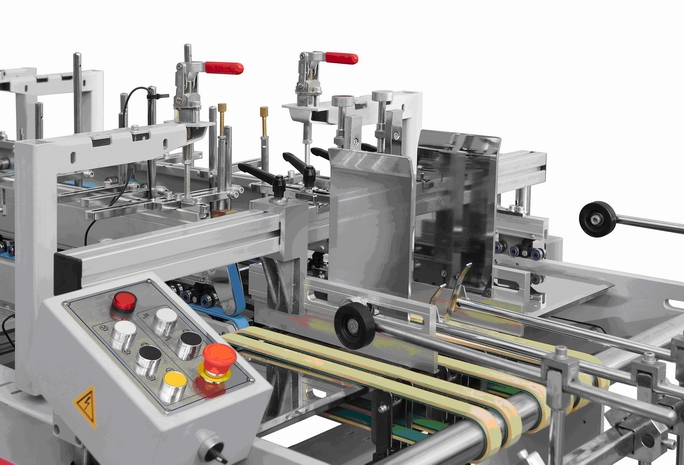

Feeder
●RAPPLON feeding belts 10pcs (specification：8×25×1110mm)
● Equipped with adjustable feeding knives: 2 pcs
● Equipped with vibrator motor : 1 set
● Equipped with Japanese infinite speed regulator : 1 set

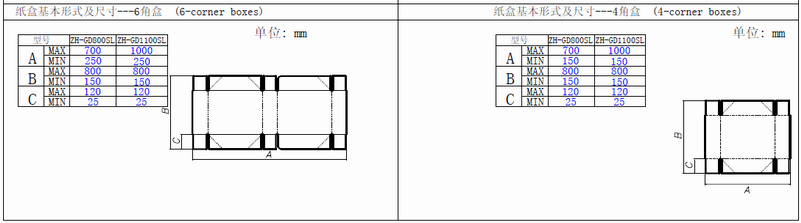

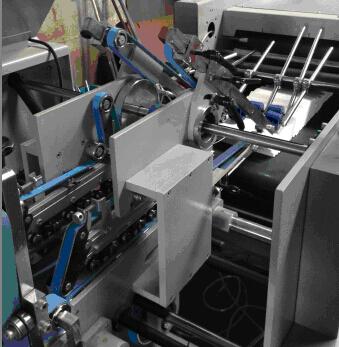

4&6Corner Section

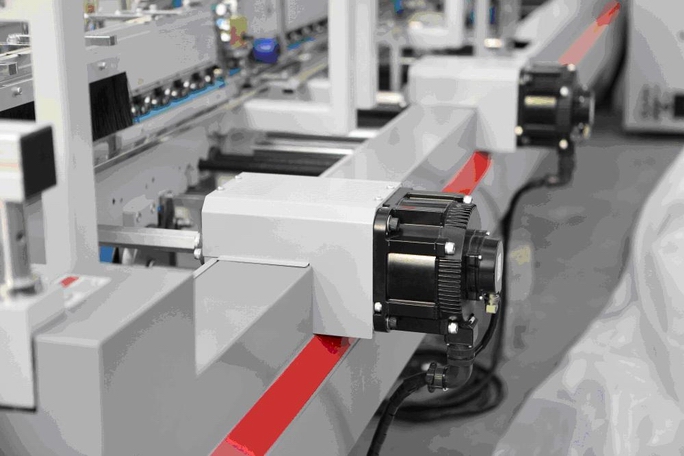

● This section is installed in a stand, according to the folding size, set up and rotate the hook height. Japan Yaskawa servo system is used.
●Inner couriers are adjusted by motors (6 sets)
●NITTA belts
Lower Gluer
● Lower gluing tank both at left and right
● Multi-layer sealing anti-leaking device is used in shaft core.
● Stainless steel gluing wheel is used.

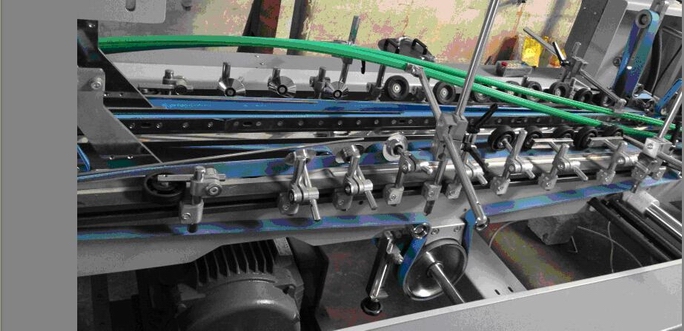

Folding section
● Special long folding section, boxes can be well folded and formed in this section.
● Inner couriers are adjusted by motors: 2 set
● Rail-guide for belts are used to avoid belts going to sides.
● NITTA folding belts
Pressing section
● Taiwan Fotek sensor and counter
● Pneumatic kicker for counting
● Nitta belts

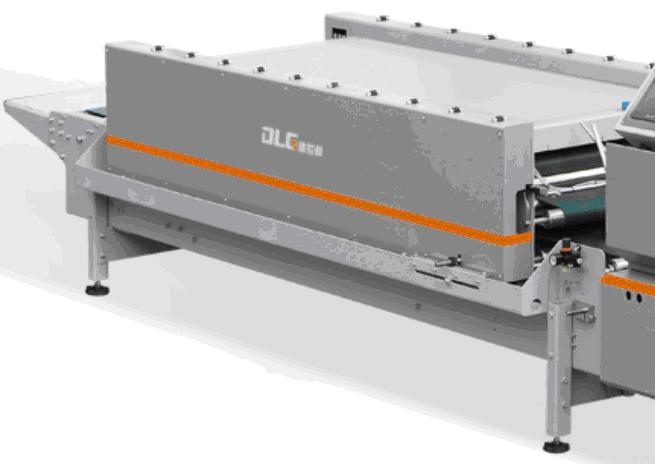

Conveyor
● Long conveyor design
● Pneumatic control
● The upper section can be moved front and back.
● The two belts are in driving system, so they could be in more synchronous running.
● Belts specification
