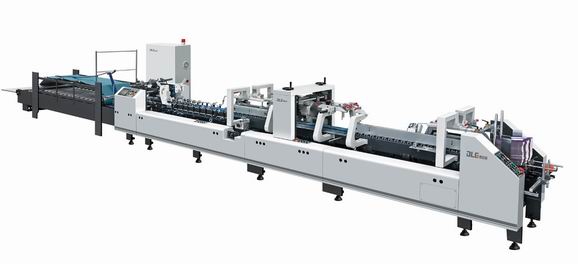

ZH-GD650II / 800 II High-speed Folder Gluer
This machine is used to handle paper boxes requiring
three-point(lock-bottom) or one point(side gluing) gluing with pre-folding and
edge-polishing mechanism, integration of photographic, mechanic and electric
technologies, suitable for more kinds of paper boxes, such as medicine,
toiletries, electricity, food and other boxes.
|
Paper Weight
|
200-700 g/m2
|
|
Total Power
|
8.1 kw
|
|
Working Speed
|
0-260 m/min
|
|
Machine Weight
|
3500 kg
|
|
Overall Dimension
|
650 II : 12000×1410×1600 mm
|
|
800 II : 12000×1610×1600 mm
|
|
Box Type
|
ZH-GD650 II
|
ZH-GD800 II
|
|
Ⅰ.
Three point gluing box size
|
A max.600; min.180
|
A max.700; min.200
|
|
B max.550; min.90
|
B max.550; min.100
|
|
C max.290; min.80
|
C max.320; min.80
|
|
D max.450; min.60
|
D max.500; min.60
|
|
E max.150; min.20
|
E max.150; min.30
|
|
F max.20; min.6
|
F max.30; min.8
|
|
Ⅱ.
One point gluing box size
|
A max.650; min.75
|
A max.800; min.75
|
|
B max.550; min.80
|
B max.550; min.80
|
|
C max.325; min.35
|
C max.400; min.35
|
|
D max.500; min.50
|
D max.500; min.50
|
|
E max.150; min.30
|
E max.150; min.30
|
|
F max.30; min.8
|
F max.30; min.8
|
